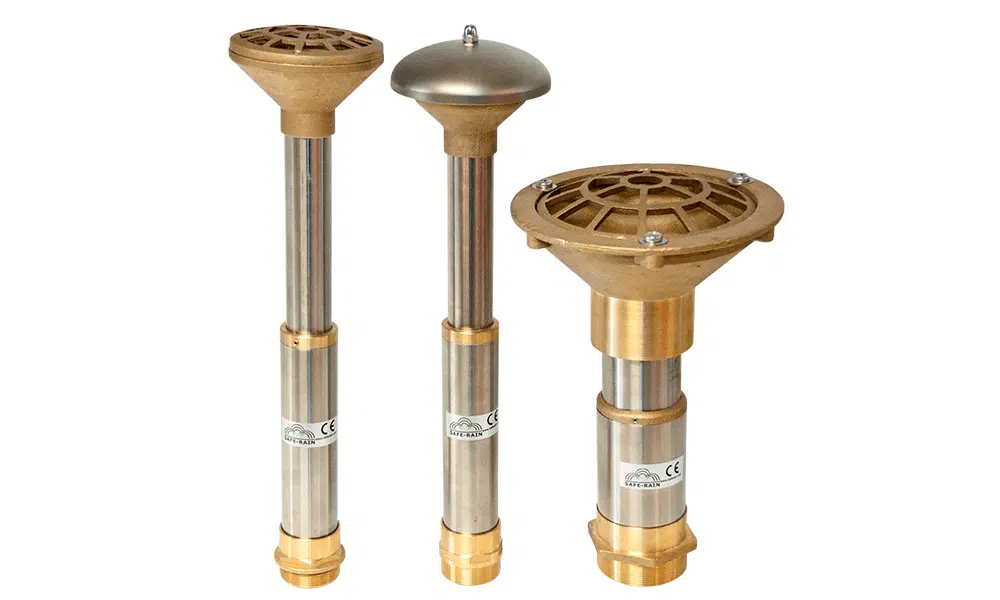

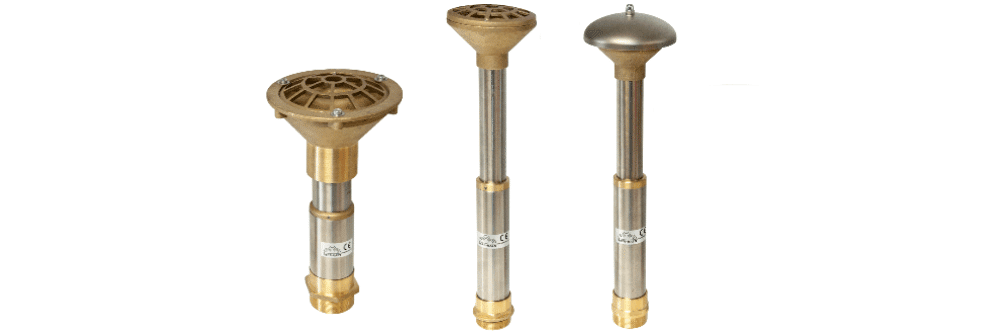

Adjustable Overflow
DESCRIPTION
The overflows maintain the maximum water level inside the basin or pool of the architectural fountain, and are adjustable to the desired height, ranging from 30 to 50 cm or 50 to 90 cm.
Optional with a bottom drain of 2” to allow dismantling the overflow in case of wanting to empty the water fountain.
2”M connection, stainless steel telescopic pipe, brass grid or stainless steel anti-vortex grid.
Overflow with anti-vortex system: Its differential factor is that it minimizes air entry into the pipe, preventing the formation of vortices, which in drains mainly causes a drastic reduction in drainage efficiency by forming a whirlpool that traps air, decreasing the outflow rate, generating turbulence, noise, and potentially causing stagnant solids not to evacuate properly.
Additionally, it limits the entry of surface debris, which improves system stability in fountains with greater turbulence.
Product features
|
CODE |
Adjustable (cm) |
Ø Thread |
Type |
Basin Drain |
F7432007 |
30 - 50 | 2" M | Grid | No |
|---|---|---|---|---|
F7432018 |
50 - 90 | 2" M | Grid | No |
F7432029 |
30 - 50 | 2" M | anti vortex | No |
F7432031 |
50 - 90 | 2" M | anti vortex | No |
F7472002 |
30 - 50 | 2" H | Grid | Yes |
F7472013 |
50 - 90 | 2" H | Grid | Yes |
F7472024 |
30 - 50 | 2" H | anti vortex | Yes |
F7472035 |
50 - 90 | 2" H | anti vortex | Yes |
F7433008 |
30 - 45 | 3" M | Grid | No |
F7433019 |
50 - 90 | 3" M | Grid | No |
